Cold Water Booster Sets

We offer a range of Aquatech cold water booster sets to suit any scale of domestic or commercial building. We also offer an optional commissioning service for all of our units.

Jump to:



ESL Domestic Series



Our series of ESL packaged booster sets are ideally suited for private houses, where water is needed for multiple bathrooms and leisure facilities, especially when these are in use simultaneously.

Designed to increase the pressure of the cold/hot water services within a building, where the existing incoming water mains or feed tank is not capable of supplying sufficient system pressure. Fully automatic in their operation they can be supplied as a complete package with various water storage tank options, with the correct air gap arrangements to comply with today’s UK water hygiene regulations.

They are designed and built to run smoothly and quietly and be fitted into utility rooms, under staircases or where space is at a premium. With rounded corners for safety and a sleek appearance, they are easy to use and can be linked to BMS to provide remote information. Built to save energy and to last with easy access to components for servicing and maintenance.

Easy to install they are supplied ready to plug into the power supply and connect to the mains water pipework.

We have 3 standard solutions covering a range of requirements, all with WRAS Approval:

Small Residential– ESL mini, single pump and tank

Duty Range: Single pump flows up to 1.3 litres, Heads up to 5.5bar.

Temperature range 5°C to 30°C

Supplied with up to 65 litre water storage tank

Medium Residential – ESL single pump and tank

Duty Range: Single pump flows up to 1.5 litres, Heads up to 5.5bar.

Temperature range 5°C to 30°C

Supplied with up to 700 litre water storage tank

Large Residential, ESL Twin pump + Tank

Duty Range: Twin pump flow up to 3 litres, Heads up to 5.5bar.

Temperature range 5°C to 30°C

Supplied with up to 1200 litre water storage tank



This all in one, floor standing unit includes a 65 litre break tank, for ample wash down water this floor-standing booster set is designed for domestic or light commercial use, to provide back flow prevention to WRAS category 5 fluid application with a higher flow and pressure than our Aquabreak AB5.

Suitable for cleaning by water flushing in bin stores, pub cellars or shops and providing a break between the mains water and the hose to maintain the required level of hygiene:

Dentistry practices, small clinics and nursing homes, day care establishments

Washing of animals and veterinary practices.

Printers, laboratories and hairdressing salons.

Butcheries and meat processing premises.

Vegetable preparation

Washing down yards and watering gardens or swimming pools.

Designed and built with easy access to components and to save space and energy. As with all our products it is built with high quality components, for reliability and longevity, giving you peace of mind.

The sets are fitted with advanced controls to protect against malfunction.

Standard Features

Easy access to components

Built to last

Energy saving

Flows up to 1.2 l/s

Water pressure up to 4.5 bar

Temperature range 5°C to 30°C

Supplied with 65 litre break tank

WRAS Approved

Monomatic MC5





Monomatic MM



This floor standing basic unit is a low duties unit incorporating a pump and a vessel designed for small premises, domestic or light commercial use, providing water boosting with existing tanks.

Suitable for boosting water where there is a tank and an affordable pump is required e.g. for light commercial or agricultural applications.

Designed and built with easy access to components and to save space and energy. As with all our products it is built with high quality components, for reliability and longevity, giving you peace of mind.

The sets are fitted with advanced controls to protect against malfunction.

Standard Features

Easy access to components

Built to last

Energy saving

Flows up to 1.8 l/s

Water pressure up to 4.5 bar

Temperature range 5°C to 30°C

WRAS Approved



This is our basic booster set available with two, three or four pumps, suitable for residential or commercial premises, to boost the water pressure up to 14.0 bar, with a water flow of up to 28 litres per second where a BMS output is not required.

The range has been designed to increase the pressure of the cold/hot water services within a building, where the existing incoming water mains or feed tank is not capable of supplying sufficient system pressure. They are fitted with energy efficient, variable speed motors, a consumer box and the latest flow-through vessels, which ensure a soft start and even wear of the pumps. They run quietly ensuring a smooth supply of water.

The sets are fitted with advanced controls to protect against malfunction.

Standard Features

• Energy Efficient Variable Speed Blueflux® motors  exceed EuP IE4 grade
Transducer Control for long term reliability and  accuracy with hydraulic shock system protection
Automatic Cascade Control for all pumps
Electronic Low Water Cut-Out Interface for pump  dry running protection, with auto re-start upon  water restoration
All components are WRAS approved
2 individual BMS Volt Free contacts per pump for run and trip condition
Built to Latest CE Requirements and in accordance with ISO9001
304 Stainless steel pipework as standard
Individual pump information LED indicator shows pump status: pump running, warning or alarm
Integral flow-through control vessel (see right)

Aquamatic AMV-FB





Aquamatic AMV-FE



This is our enhanced booster set available with two, three, four, five or six pumps, suitable for large residential or commercial premises, to boost the water pressure up to 14.0 bar, with a water flow of up to 48 liters per second.

Aquamatic AMV-FE Water Booster Set Enhanced series:

The range has been designed to increase the pressure of the cold/hot water services within a building, where the existing incoming water mains or feed tank is not capable of supplying sufficient system pressure.

Aquamatic AMV-FE Water Booster Set – Enhanced series also for use with sprinkler systems:

The enhanced series for special use with Sprinkler systems have the important added advantage of being easily configured into a residential sprinkler system saving installation time and money and are fully compliant to BS9251:2014 [Fire sprinkler systems for domestic and residential occupancies – Code of practice] Ideal for high rise flats and residential premises.

All are fitted with our 2020 Plus controller and energy efficient, variable speed motors which continuously alter their speed to match fluctuating system flow rates. They have the latest flow-through vessels, which ensure a soft start and even wear of the pumps and ensure the smooth supply of water meaning they run quietly.

The sets are fitted with advanced controls to protect against malfunction and sophisticated software to detect and alert of any leaks.

Standard Features

Energy Efficient Variable Speed Blueflux® motors  to EuP IE3 grade (0.75kW to 2.2kW motors  exceed EuP IE4 grade)

‘2020Plus’ Microprocessor/Transducer Control for long term reliability and accuracy with ‘REPRESS’  hydraulic shock system protection

Automatic Cascade Control for all pumps

User Friendly Keypad & illuminated 2 line LCD  Display for ‘Plain English’ information for both  system status and system pressure

Electronic Low Water Cut-Out for pump dry  running protection, with auto re-start upon  water restoration

All pumpsets are WRAS approved and are  ECA Energy Technology Listed Product

BMS Volt Free Enhanced package fitted as standard

Built to Latest CE Requirements and in accordance with ISO9001

304 Stainless steel pipework as standard

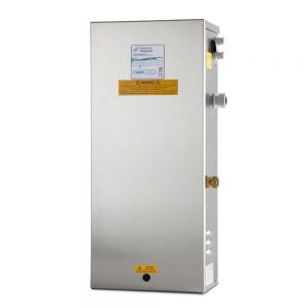

The Aquabreak AB5 is a small wall mounted pump set and is predominantly used to provide back flow prevention to fluid category 5.

Suitable for washing down a rubbish bin store or pub cellar by water flushing and providing a break between the mains water and the hose to maintain the required level of hygiene.

It also complies with the Water Authorities requirements for water supply to:

Dentistry practices, small clinics and nursing homes, day care establishments

Washing of animals and veterinary practices.

Printers, laboratories and hairdressing salons.

Butcheries and meat processing premises.

Vegetable preparation

Washing down yards and watering gardens or swimming pools.

It can be easily retrofitted following any inspection which dictates that a Category 5 device should be used for the water supply to the premises.

Designed and built with easy access in mind, wall mounted to avoid the need to kneel. As with all our products it is built with high quality parts, for reliability and longevity requiring no maintenance.

The electronic controller ensures that the pump starts automatically when water is consumed and stops automatically when the consumption ceases. In addition the controller protects the pump in case of faults, giving you peace of mind.

Standard Features

Automatic Pump Operation via Electronic Controller

Back Flow Prevention to Fluid Category 5

Pump Dry Running/No-Water Protection

Fully packaged for simple wall mount installation

Easy access to components

Built to last

Energy saving

Temperature range 5°C to 30°C

Supplied with single pump and 5 litre break tank

Flows up to 1.3 litres; heads up to 1.5bar

WRAS compliant

Aquabreak AB5
